1. Product Description

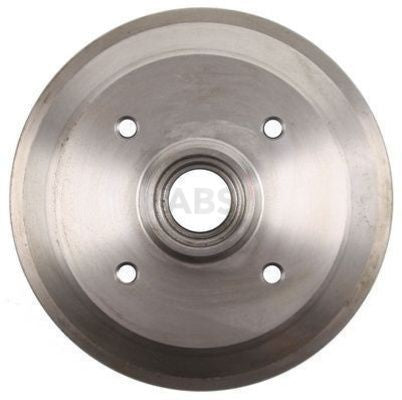

The A.B.S. Brake drum (3345-S) is a high-precision rear axle braking component manufactured by All Brake System (A.B.S.). This solid iron brake drum features a 4-hole configuration with integrated hub measurements designed for un-bearing configurations. Its primary design function is to provide a reliable structural friction surface for the rear brake shoes, absorbing and dissipating kinetic heat during mechanical engagement to deliver smooth, predictable rear wheel deceleration and parking brake hold.
2. Product Specifications
- Manufacturer: A.B.S.
- Item Number: 3345-S
- Trade / Alternative Numbers: A.B.S. 3345-S
- EAN Number: 8717109033137
- Product Condition: New
- Inner Brake Drum Diameter [mm]: 180
- Outer Brake Drum Diameter [mm]: 216
- Inner Brake Drum Height [mm]: 46
- Total Brake Drum Height [mm]: 77
- Wheel Hub Diameter [mm]: 40
- Wheel Hub Diameter 2 [mm]: 50
- Bolt Hole Circle Ø [mm]: 108
- Rim Hole Number: 4
- Fitting Position: Rear Axle
3. Vehicle Compatibility
| Car Model | Compatible Engines | Engine Power (hp / kW) | Year of Manufacture |
|---|---|---|---|
| Ford Fiesta Mk3 (GFJ) / Van / Box | 1.0 / 1.1 / 1.3 / 1.3 Cat / 1.4 / 1.4 Cat / 1.6 / 1.6 D / 1.8 D | 45 - 105 hp / 33 - 77 kW | 1989 - 1996 |
| Ford Fiesta Mk4 (JA_, JB_) / J5_, J3_ / JV_ | 1.25 i 16V / 1.3 i / 1.4 i 16V / 1.8 D / 1.8 DI | 60 - 90 hp / 44 - 66 kW | 1995 - 2002 |
| Ford Fiesta Mk5 (JH_, JD_) | 1.25 16V / 1.3 / 1.4 16V / 1.4 TDCi / 1.6 16V / 1.6 TDCi | 60 - 100 hp / 44 - 74 kW | 2001 - 2010 |
| Ford Fusion (JU_) | 1.25 / 1.4 / 1.4 TDCi / 1.4 LPG / 1.6 / 1.6 TDCi | 68 - 100 hp / 50 - 74 kW | 2002 - 2012 |
| Ford Escort Mk3 / Mk4 (GAA, GAF, AAL, ABL) / Convertible / Estate | 1.1 / 1.3 / 1.4 / 1.4 Cat / 1.6 / 1.6 i / 1.6 D | 50 - 105 hp / 37 - 77 kW | 1980 - 1990 |
| Ford Orion 1 (AFD) / Orion 2 (AFF) | 1.3 / 1.4 / 1.4 Cat / 1.6 / 1.6 i / 1.6 D / 1.8 D | 54 - 105 hp / 40 - 77 kW | 1983 - 1990 |
| Mazda 2 Hatchback (DY) | 1.25 / 1.4 / 1.4 CD / 1.6 | 68 - 100 hp / 50 - 74 kW | 2003 - 2007 |
4. Original Equipment Manufacturer (OEM) Reference Numbers
- FORD: 6086628, 1598117, 2S6W1113AA, 2S6W1113AB, 81AB1113AFW, 1135240, 1140058
- MAZDA: DD3226251, DD3226251A
