Product Description

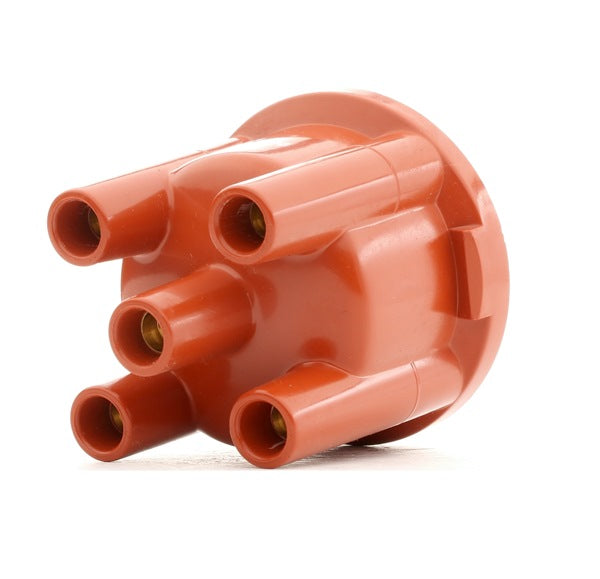

The TOPRAN Distributor Cap (101 971) is an original-equipment-quality ignition system component manufactured by TOPRAN. Positioned directly atop the engine's mechanical ignition distributor housing, its primary function is to safely insulate and distribute the high-voltage electrical charges received from the ignition coil. As the internal distributor rotor arm spins, the current arcs across to the internal metal contacts of this cap, sending a high-intensity spark down the high-tension (HT) ignition leads to each spark plug in the correct firing order. Over time, moisture, ozone generation, and thermal cycling cause micro-cracks in the composite housing or oxidation on the brass contacts, leading to engine misfires, poor fuel economy, and rough idling.
Product Specifications
- Manufacturer: TOPRAN
- Item Number: 101 971 / 101971
- Product Condition: New
- Component Classification: Secondary Ignition Distributor Cap
- Material: High-dielectric phenolic / polyester resin compound engineered to prevent electrical tracking and withstand high engine bay temperatures
- Contact Material: Premium corrosion-resistant brass / copper alloy inserts
- Connection Type: DIN plug connection style (Pin-type socket receivers for push-on ignition cables)
- Fixing Type: Dual spring-clip fastening mechanism
Vehicle Compatibility
This clip-on style ignition distributor cap is precision-molded to service classic carburetted and early fuel-injected inline 4-cylinder engines across the Volkswagen Group (VAG) catalog from the mid-1970s through the late 1990s:
| Car Model | Compatible Engines / Variants | Engine Displacement Range | Year of Manufacture |
|---|---|---|---|
| VW Golf II (19E, 1G1) / Jetta II (19E) | 1.3 / 1.6 / 1.8 / 1.8 GTI (Paired with standard Bosch mechanical/electronic distributors) |
1272 - 1781 cc | 1983 - 1992 |
| VW Golf I (17) / Jetta I (16) / Convertible (155) / Scirocco | 1.1 / 1.3 / 1.5 / 1.6 / 1.8 | 1093 - 1781 cc | 1976 - 1993 |
| VW Golf III (1H1) / Vento (1H2) / Variant | 1.4 / 1.6 / 1.8 / 2.0 GTI 8V (Excludes multi-point 16V and static coil-pack layouts) |
1391 - 1984 cc | 1991 - 1997 |
| VW Polo II & III (86C, 6N1) / Passat B2 & B3 | 1.0 / 1.3 / 1.6 / 1.8 / 2.0 | 1043 - 1984 cc | 1981 - 1999 |
| SEAT Toledo I (1L) / Ibiza II (6K1) / Cordoba | 1.4 i / 1.6 i / 1.8 i / 2.0 i | 1391 - 1984 cc | 1991 - 1999 |
⚠️ Ignition System Type Fitment Warning: This distributor cap is engineered for vehicles equipped with standard Bosch-type ignition distributors utilizing spring-clip retainers and pin-type DIN cable terminals. It will NOT fit vehicle applications that use Ducellier or Marelli distributor assemblies, which feature entirely different physical dimensions and clamping footprints. It is also incompatible with later-generation VAG engines that utilize modern distributorless static coil packs or coil-on-plug (COP) ignition setups. When replacing the cap, it is highly recommended to install a matching fresh distributor rotor arm to ensure optimum electrical conductivity.
Original Equipment Manufacturer (OEM) Reference Numbers
This premium replacement secondary ignition cap cross-references directly with, or acts as a factory-correct swap for, the following original equipment codes:
- VAG (VW / AUDI / SEAT / SKODA): 026 905 207, 026905207, 026 905 207A, 026905207A, 059 905 207, 059905207
- BOSCH: 1 235 522 056, 1235522056, 1 235 522 430, 1235522430
