Product Description

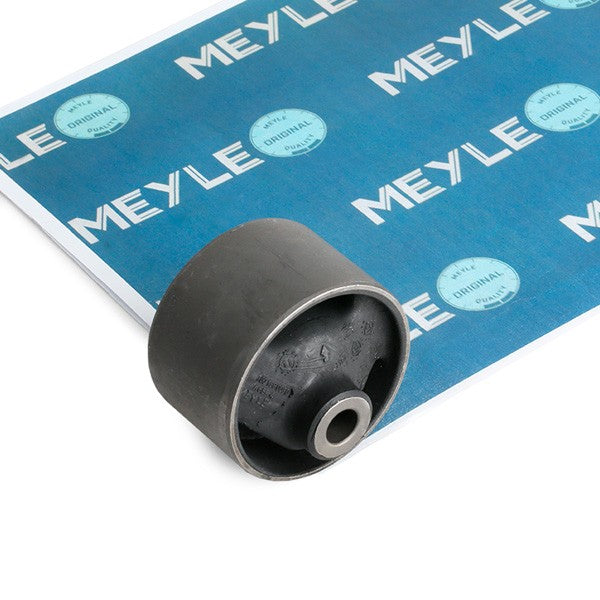

The MEYLE Engine mount (100 199 0030) is an original-equipment-quality structural rubber-metal insert manufactured by MEYLE. Positioned on the left side of the engine bay (typically supporting the transmission/gearbox housing casing framework), its primary function is to securely anchor the drivetrain to the vehicle chassis. It effectively dampens high-frequency mechanical engine vibrations and cushions shifting forces, preventing raw drivetrain movement from transferring into the passenger cabin.
Product Specifications
- Manufacturer: MEYLE
- Item Number: 100 199 0030
- Trade / Alternative Numbers: 1001990030, MW0067
- EAN Number: 4040074063255
- Product Condition: New
- Mounting Type: Structural Rubber-Metal Bush Insert
- Fitting Position: Left Axle Area / Gearbox Side
- Outer Diameter [mm]: 64.7
- Width [mm]: 40.0
- Inner Bore Diameter [mm]: 11.0
Vehicle Compatibility
This legendary circular insert geometry is custom-engineered for the first-generation (A1 chassis) water-cooled vehicle families developed by the Volkswagen Group (VAG) from the mid-1970s through the early 1990s. It frequently targets automatic transmission and specialized diesel engine bracket applications:
| Car Model | Compatible Engines / Variants | Engine Power (hp / kW) | Year of Manufacture |
|---|---|---|---|
| VW Golf I (17) / Jetta I (16) | 1.1 / 1.3 / 1.5 / 1.6 / 1.6 GTI / 1.6 D / 1.6 TD | 50 - 110 hp / 37 - 81 kW | 1974 - 1984 |
| VW Golf I Convertible (155) | 1.5 / 1.6 / 1.8 / 1.8 Sportline | 70 - 112 hp / 51 - 82 kW | 1979 - 1993 |
| VW Scirocco I & II (53, 53B) | 1.5 / 1.6 / 1.6 GTI / 1.8 / 1.8 GTI / 1.8 16V | 70 - 139 hp / 51 - 102 kW | 1974 - 1992 |
| VW Caddy I Pickup (14) | 1.5 / 1.6 / 1.8 / 1.6 Diesel | 54 - 95 hp / 40 - 70 kW | 1982 - 1992 |
Original Equipment Manufacturer (OEM) Reference Numbers
This rubber-metal drivetrain isolation element replaces or interfaces directly with the following factory codes:
- VAG (VW / AUDI / SEAT / SKODA): 171 199 214G, 171199214G, 171 199 214H, 171199214H, 171 199 214J, 171199214J, 171 199 214C, 171199214C
