Product Description

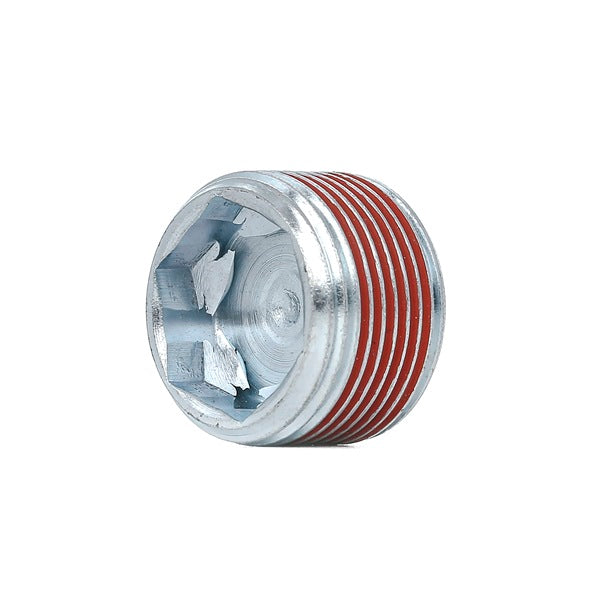

The METZGER Screw Plug, transmission housing (8030064) is an original-equipment-quality mechanical fluid service fastener manufactured by METZGER. Positioned directly in the transmission housing port holes, its primary function is to seal the vital oil inspection or drainage channels within the gearbox casing. It keeps high-viscosity gear lubricants safely sealed inside the transaxle assembly while offering an airtight barrier against external humidity and debris. Engineered with a specialized self-centering tapered edge profile, it establishes a reliable metal-to-metal high-pressure seal without demanding additional soft copper compression washers.
Product Specifications
- Manufacturer: METZGER
- Item Number: 8030064
- EAN Number: 4251662493375
- Product Condition: New
- Thread Size: M24 x 1.5
- Thread Length [mm]: 12
- Overall Length [mm]: 16
- Spanner/Socket Size: 17mm Internal Hex (Allen Key / Hex Bit drive interface)
- Material: High-Grade Zinc-Plated Carbon Steel for robust anti-corrosion protection against road moisture
- Drive Profile: Internal Hexagon (Allen Drive) to maximize tool contact surface and prevent head stripping during high-torque service removal
Vehicle Compatibility
This M24 x 1.5 threaded transmission plug is an iconic service component utilized heavily across nearly all manual transmission generations developed by the Volkswagen Group (VAG), as well as selective European powertrain applications from the late 1970s up through the 2020s:
| Car Model | Compatible Engines / Variants | Engine Power (hp / kW) | Year of Manufacture |
|---|---|---|---|
| VW Golf II (19E) / III (1H1) / IV (1J1) / V (1K1) | 1.4 / 1.6 / 1.8 / 1.8 T / 2.0 / 1.9 D / 1.9 TD / 1.9 TDI (Fits 020 rod-shift, 02A, 02J, and 02M manual transaxle families) |
50 - 180 hp / 37 - 132 kW | 1983 - 2008 |
| VW Golf VI (5K1) / VII (5G1) / VIII (CD1) | 1.0 TSI / 1.2 TSI / 1.4 TSI / 1.5 TSI / 1.6 TDI / 2.0 TDI (Fits standard 5-speed and 6-speed manual configurations) |
85 - 150 hp / 63 - 110 kW | 2008 - Present |
| AUDI A3 (8L1, 8P1, 8V1, 8YA) / AUDI A4 (8D2 B5, 8E2 B6, 8K2 B8) | 1.6 / 1.8 T / 1.4 TFSI / 1.5 TFSI / 1.9 TDI / 2.0 TDI (Manual configurations for both transverse and longitudinal platforms) |
90 - 190 hp / 66 - 140 kW | 1995 - Present |
| SKODA Octavia I, II, III, IV (1U2, 1Z3, 5E3, NX3) | 1.4 / 1.6 / 1.2 TSI / 1.4 TSI / 1.5 TSI / 1.6 TDI / 1.9 TDI / 2.0 TDI | 60 - 150 hp / 44 - 110 kW | 1996 - Present |
| SEAT Leon (1M1, 1P1, 5F1, KL1) / Ibiza II, III, IV, V | 1.2 / 1.4 / 1.6 / 1.2 TSI / 1.4 TSI / 1.5 TSI / 1.9 TDI / 2.0 TDI | 60 - 150 hp / 44 - 110 kW | 1993 - Present |
| VW Transporter T4 (70X) / T5 (7HA) / T6 (SGA) | 1.9 TD / 1.9 TDI / 2.0 / 2.0 TDI / 2.4 D / 2.5 TDI | 68 - 150 hp / 50 - 110 kW | 1990 - 2020 |
⚠️ Technical Maintenance Tip: Because these plugs are made of zinc-plated steel and are screwed directly into cast aluminum transmission casings, they are susceptible to galvanic corrosion and road debris binding over long service intervals. Always clean the internal 17mm hex recess entirely before inserting your tool, and ensure the hex socket is fully seated to avoid stripping the soft internal corners during fluid drains. Torquing strictly to factory specifications is highly recommended.
Original Equipment Manufacturer (OEM) Reference Numbers
This premium replacement service plug cross-references directly with or substitutes for the following factory assembly component numbers:
- VAG (VW / AUDI / SEAT / SKODA): WHT 001 937, WHT001937, 012 301 127F, 012301127F, AMV 188 001 02, AMV18800102
- PORSCHE: 999 064 018 02, 99906401802
