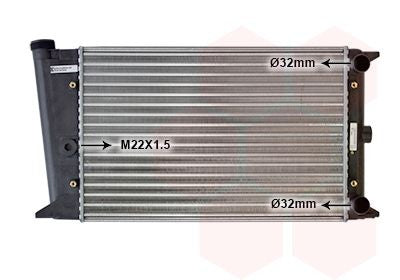

Product Description
The VAN WEZEL Engine radiator (58002004) is an original-equipment-quality thermal exchange module manufactured under the premium "International Radiators" division of VAN WEZEL. Mounted securely at the front of the vehicle chassis, its primary function is to lower engine temperatures by shedding heat from the circulating cooling fluid. High-temperature coolant is routed through its internal mechanical capillary layout, where incoming atmospheric airflow rapidly dissipates thermal energy, keeping the engine running efficiently and protecting gaskets from overheating.
Product Specifications
- Manufacturer: VAN WEZEL
- Product Line: International Radiators
- Item Number: 58002004
- EAN Number: 5410909191060
- Product Condition: New
- Core Dimensions [mm]: 430 x 322 x 34 (Width x Height x Thickness)
- Core Construction Technology: Mechanical assembly structure featuring premium aluminum cooling fins
- Tank Material: Glass-fibre reinforced high-impact polyamide
- Transmission Application: Suitable for Manual 4-speed and 5-speed gearboxes
- Air Conditioning: Specially optimized for models without an integrated A/C system
Vehicle Compatibility
This 430mm narrow-grid cooling matrix is designed to accommodate small-to-medium displacement naturally aspirated petrol and early diesel engine architectures across the vintage Volkswagen Group (VAG) model matrix:
| Car Model | Compatible Engines / Variants | Engine Power (hp / kW) | Year of Manufacture |
|---|---|---|---|
| VW Golf II (19E, 1G1) / Jetta II (19E) | 1.0 / 1.3 / 1.3 Cat / 1.6 / 1.6 D / 1.6 TD (Standard front-wheel-drive base variants) |
45 - 75 hp / 33 - 55 kW | 1983 - 1992 |
| VW Golf I (17) / Jetta I (16) / Convertible (155) | 1.5 / 1.6 / 1.6 D / 1.6 TD / 1.8 (Matching vehicles with matching side-pin mounting layout) |
54 - 95 hp / 40 - 70 kW | 1977 - 1993 |
| VW Scirocco I & II (53, 53B) | 1.5 / 1.6 / 1.8 (Naturally aspirated configurations) | 70 - 95 hp / 51 - 70 kW | 1977 - 1992 |
| SEAT Toledo I (1L) | 1.6 i (Early carburetted or SPI models) | 71 - 73 hp / 52 - 54 kW | 1991 - 1993 |
| VW Caddy I Pickup (14) | 1.5 / 1.6 / 1.6 Diesel | 54 - 75 hp / 40 - 55 kW | 1982 - 1992 |
⚠️ Critical Technical Application Check: Like its companion alternatives, this radiator uses the standard **430mm narrow core configuration**. It is designed specifically to drop directly into standard mounting brackets without modification. It will NOT replace the larger 525mm or 675mm radiators standard on high-performance engine platforms (such as the GTI 16V, G60, or GTD with intercooler setup), automatic transaxles, or vehicles fitted with air conditioning complexes. Please measure your current radiator's core width before ordering.
Original Equipment Manufacturer (OEM) Reference Numbers
This premium replacement radiator serves as a direct cross-reference for the following catalog original production part codes:
- VAG (VW / AUDI / SEAT / SKODA): 191 121 253, 191121253, 191 121 253L, 191121253L, 171 121 253CB, 171121253CB, 171 121 253CJ, 171121253CJ
