Product Description

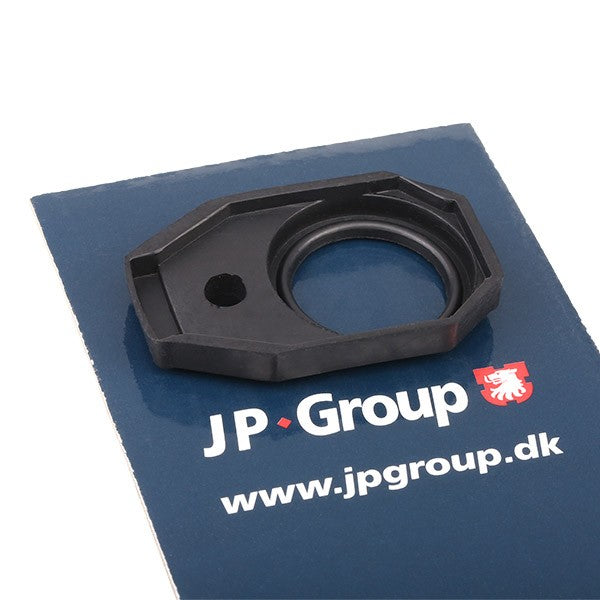

The JP GROUP Shaft Seal, speedometer drive (1170650800) is an original-equipment-quality drivetrain sealing component manufactured by JP GROUP. Positioned on the transmission casing at the speedometer cable insertion point, its primary function is to seal the rotating mechanical speedometer driven gear shaft. This prevents high-viscosity gearbox oil from seeping out of the transmission housing and migrating up into the mechanical speedometer cable sleeve, keeping your engine bay clean and protecting cabin instruments from fluid fouling.
Product Specifications
- Manufacturer: JP GROUP
- Item Number: 1170650800
- Product Condition: New
- Sealing Component Type: Radial Shaft Seal / O-Ring profile for mechanical transmission speedo drives
- Material: Premium elastomer compound engineered for high resistance against synthetic and mineral gear oils, friction, and heat aging
- Inner Diameter [mm]: 8.7
- Outer Diameter [mm]: 15
- Thickness / Width [mm]: 5
Vehicle Compatibility
This compact radial shaft seal is a critical restoration component precision-dimensioned for standard manual transmission assemblies across standard classic Volkswagen Group (VAG) passenger cars spanning the 1970s through the early 2000s:
| Car Model | Compatible Engines / Variants | Transmission / Layout | Year of Manufacture |
|---|---|---|---|
| VW Golf I (17) / Golf II (19E, 1G1) / Golf III (1H1) | 1.3 / 1.6 / 1.8 / 2.0 / 1.6 D / 1.9 TDI (All standard petrol and diesel models) |
4-Speed & 5-Speed Manual Gearboxes (020 type transmission families) |
1974 - 1998 |
| VW Jetta I (16) / Jetta II (19E) / Vento (1H2) | 1.3 / 1.6 / 1.8 / 2.0 / 1.6 TD | Manual Gearbox Layouts | 1979 - 1998 |
| VW Passat B1 (32) / B2 (32B) / B3 & B4 (3A2, 35I) | 1.3 / 1.6 / 1.8 / 2.0 / 1.9 TD | Manual Transmission Series | 1973 - 1997 |
| VW Polo I (86) / Polo II & III (86C, 6N1) / Scirocco | 0.9 / 1.0 / 1.1 / 1.3 / 1.4 / 1.6 | Compact 4 & 5-speed manual platforms | 1975 - 2001 |
| AUDI 80 B2 & B3 (81, 85, 89) / SEAT Toledo I (1L) | 1.6 / 1.8 / 2.0 / 1.6 TD / 1.9 D | VAG manual transmission applications | 1978 - 1999 |
⚠️ Technical Transmission Warning: This seal is configured exclusively for classic mechanical cable-driven speedometer linkages fitting into traditional VAG gearboxes (like the highly common 020 gearbox series). It will NOT fit modern electronic speed sensor units (G22 pulse senders) used on newer digital dashboards, nor will it seal heavy-duty automatic transmissions. Always verify your specific gearbox casing type and dimensions (8.7x15x5 mm) prior to installation.
Original Equipment Manufacturer (OEM) Reference Numbers
This replacement drivetrain seal matches or safely replaces factory original equipment part listings assigned under the following VAG catalog codes:
- VAG (VW / AUDI / SEAT / SKODA): 014 311 561A, 014311561A, 014 311 561, 014311561
