1. Product Description

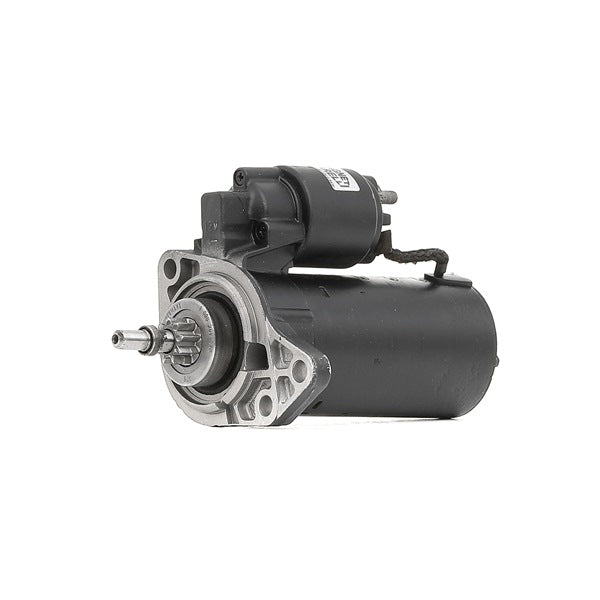

The MAGNETI MARELLI Starter motor (943202941010) is a high-performance electrical cranking component manufactured by MAGNETI MARELLI. Engineered to convert high-current battery power into mechanical torque, its primary design function is to forcefully rotate the engine fly-wheel to initiate the vehicle's combustion and internal starting cycles.
2. Product Specifications
- Manufacturer: MAGNETI MARELLI
- Item Number: 943202941010
- Trade / Alternative Numbers: MSR294
- EAN Number: 8016851167667
- Product Condition: New
- Voltage [V]: 12
- Rated Power [kW]: 1.1
- Number of Teeth: 9
- Rotation Direction: Clockwise rotation
- Flange Ø [mm]: 76
- Number of Mounting Bores: 2
- Number of Threaded Bores: 1
- Clamp / Terminals: B+ (M8), 50 (Plug-in connector)
- Weight [kg]: 3.39
3. Vehicle Compatibility
| Car Model | Compatible Engines | Engine Power (hp / kW) | Year of Manufacture |
|---|---|---|---|
| FORD Fiesta II (FBD); FORD Fiesta III (GFJ); FORD Escort IV (GAF, AWF, ABFT); FORD Escort IV Convertible (ALF); FORD Escort IV Estate (AWF, AVF); FORD Orion II (AFF) | 1.3; 1.4; 1.4 Cat; 1.6; 1.6 XR2; 1.6 XR2i; 1.6 i; 1.6 RS Turbo | 60 - 132 hp / 44 - 97 kW | 1983 - 1995 |
| FORD Fiesta IV (JA_, JB_); FORD Fiesta V (JH_, JD_); FORD Fiesta Box Body / Hatchback (J5_, J3_); FORD Fiesta Box Body / Hatchback (JV_) | 1.3; 1.3 i | 50 - 69 hp / 37 - 51 kW | 1995 - 2008 |
| FORD Ka (RB_) | 1.3 i | 49 - 60 hp / 36 - 44 kW | 09.1996 - 11.2008 |
4. Original Equipment Manufacturer (OEM) Reference Numbers
- FORD: 1017406, 1459005, 5026952, 6162943, 6192131, 6656711, 84SF11000AA, 84SF11000AB, 89FB11000AA, 91FB11000AA, R84SF11000AB, R89FB11000AA
