Product Description

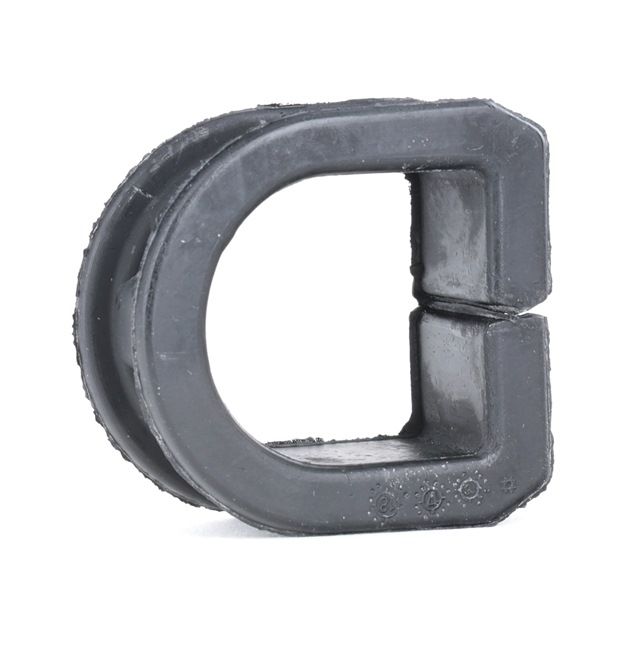

The MEYLE Mounting, steering gear (100 419 0001) is an original-equipment-quality steering rack bush manufactured by MEYLE. Positioned between the mechanical steering gear housing and the front subframe/chassis, its primary function is to securely clamp and isolate the steering rack assembly. By using optimized elastomeric rubber compounds, it prevents unwanted shifting or twisting of the steering rack under high load conditions while dampening harsh road vibrations before they can travel up the column to the steering wheel.
Product Specifications
- Manufacturer: MEYLE
- Item Number: 100 419 0001
- EAN Number: 4040074002209
- Product Condition: New
- Fitting Position: Front Axle Left (Passenger/Near-side on RHD vehicles, Driver/Off-side on LHD vehicles)
- Material: High-grade Elastomer / Natural Rubber composite for maximum fatigue resistance
- Paired Article Number (Right Side): 100 419 0002
- Supplementary Info: ORIGINAL Quality specification
Vehicle Compatibility
This D-profile molded rubber steering assembly mount is an essential component designed specifically for classic first-generation Volkswagen Group (VAG) water-cooled platforms manufactured from the mid-1970s through the early 1990s:
| Car Model | Compatible Engines / Variants | Engine Power (hp / kW) | Year of Manufacture |
|---|---|---|---|
| VW Golf I (17) / Jetta I (16) | 1.1 / 1.3 / 1.5 / 1.6 / 1.6 GTI / 1.8 GTI / 1.5 D / 1.6 D / 1.6 TD | 50 - 112 hp / 37 - 82 kW | 1974 - 1984 |
| VW Golf I Convertible (155) | 1.5 / 1.6 / 1.6 GLI / 1.8 / 1.8 GTI (All manual steering configurations) | 70 - 112 hp / 51 - 82 kW | 1979 - 1993 |
| VW Scirocco I & II (53, 53B) | 1.3 / 1.5 / 1.6 / 1.6 GTI / 1.8 / 1.8 GTI / 1.8 16V | 60 - 139 hp / 44 - 102 kW | 1974 - 1992 |
| VW Caddy I Pickup (14) | 1.5 / 1.6 / 1.8 / 1.6 Diesel (All variants utilizing manual steering racks) | 54 - 95 hp / 40 - 70 kW | 1982 - 1992 |
Original Equipment Manufacturer (OEM) Reference Numbers
This replacement elastomer chassis steering mount cross-references directly with or substitutes for the following factory original part numbers:
- VAG (VW / AUDI): 171 419 883, 171419883
